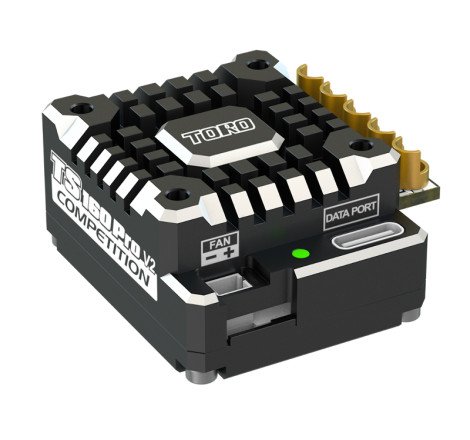

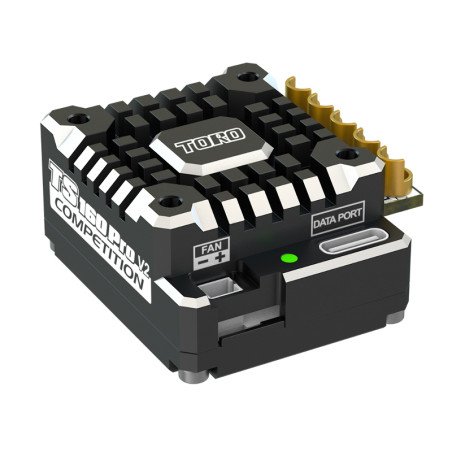

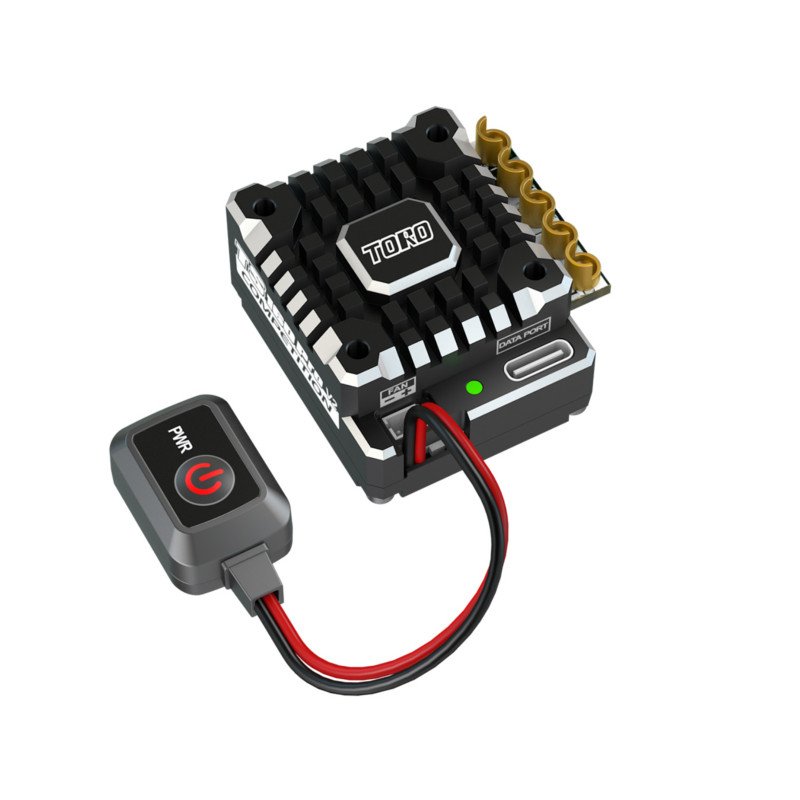

SKYRC TS160 PRO 2-3S ESC

The SkyRC TS160 Pro V2 is a high-performance ESC built for demanding 1/10 Touring, Buggy, and Crawler drivers. Powered by a high-performance STMicroelectronics chip and SkyRC's proprietary PowerRun algorithm, it delivers precise, punchy response for both smooth linear driving and explosive burst-power racing. It features a built-in BEC switchable between 6V and 7.4V with up to 15A output, eliminating the need for a separate battery to power standard or high-voltage servos. An active cooling fan and high-conductivity copper posts keep temperatures in check, while multiple real-time protections (overvoltage, low voltage, motor stall, and over-temperature) ensure reliability under heavy load. It's compatible with the RC Gears app (available in Chinese, English, Japanese, and German), allowing programming of nearly 40 parameters. With the optional Bluetooth dongle (SK-600135-02, sold separately), it supports wireless setup and OTA firmware updates.

• Part number: SK-300078
• Constant/Peak current: 160A / 850A
• BEC output: 6V or 7.4V switchable, up to 15A
• Compatible motors: brushless sensored and sensorless
• Compatible vehicles: 1/10 Touring Car, 1/10 Buggy, 1/10 Crawler
• Minimum motor turns: Touring Car ≥4.5T / Buggy ≥5.5T
• Compatible batteries: 2-3S LiPo / 6-9S NiMH
• Programming: RC Gears app (Bluetooth dongle sold separately)
• Net weight: 97 g
• Size: 39 x 38 x 19 mm (L x W x H)
• Operating temperature: -10°C to 40°C
• Storage temperature: -20°C to 50°C

For more information, visit the manufacturer's website: https://www.skyrc.com/ts160pro
