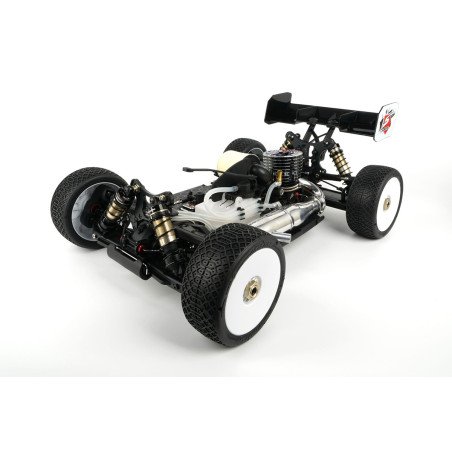

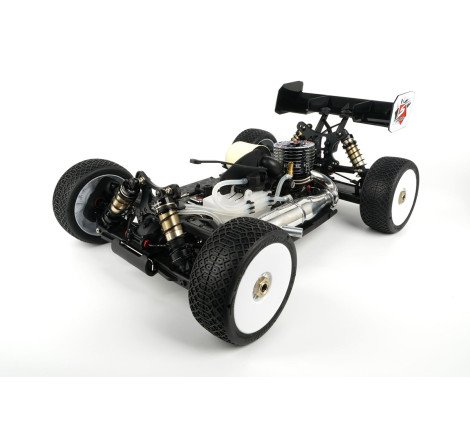

S35-5 1/8 PRO NITRO BUGGY PRO KIT S35-5 SWORKZ

The SWORKz S35-5 is the next evolution of the proven S35-4 EVO platform, built for professional-level 1/8 nitro buggy competition. Based on the same wheelbase profile that has taken SWORKz factory drivers to the podium at the world's most demanding events, the S35-5 refines the geometry of its predecessor in key areas to deliver higher cornering speeds, increased traction and a more forgiving driving feel — without losing the predictable, controllable character that defines the series. Also available with an optional +3 mm extended chassis for fast, high-grip tracks.

This is an unassembled kit requiring a nitro engine, exhaust, electronics and tyres to complete. Aimed at drivers and distributors who want maximum flexibility in vehicle configuration.

Key Features

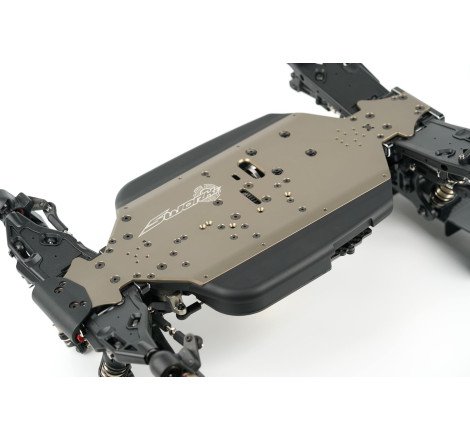

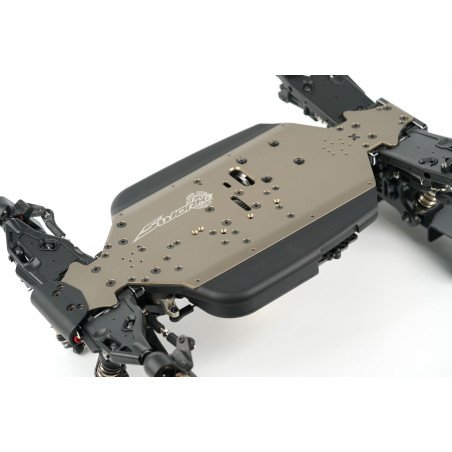

• T7075 hard-anodized, lightened aluminium chassis (New)
• Wheelbase identical to the S35-4 EVO; optional +3 mm extended chassis available
• Short kit chassis design (New)
• SWORKz HET differential system — 3 differentials included
• Quick diff release gearbox system (New)
• Adjustable differential and pinion gear height system (New)

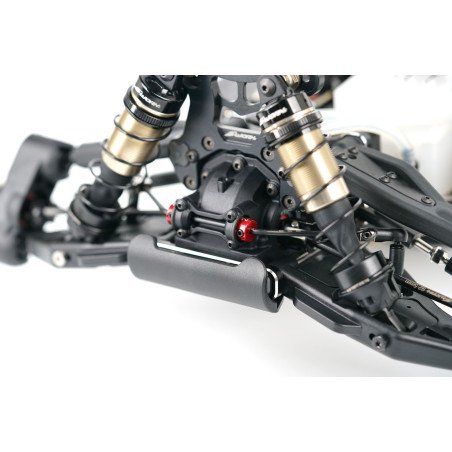

• Ball bearing guided sway bar system (New)

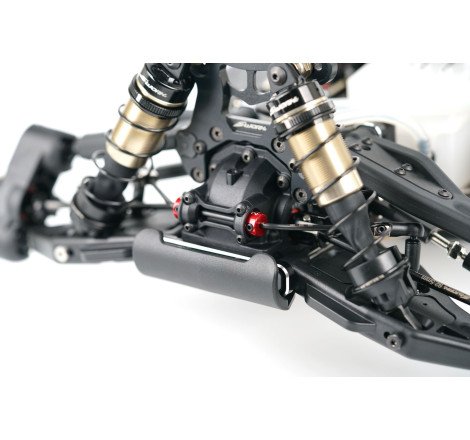

• Double-line shock towers — upper position (S35-4 EVO proven) and lower position optimized for high-grip tracks (New)
• New-generation Samurai Competition shock springs (New)
• Teflon-coated shock shafts with high-quality X-rings

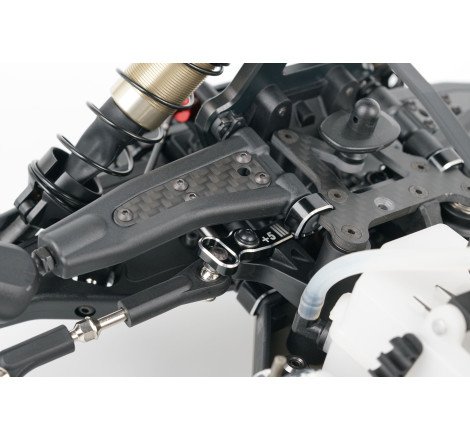

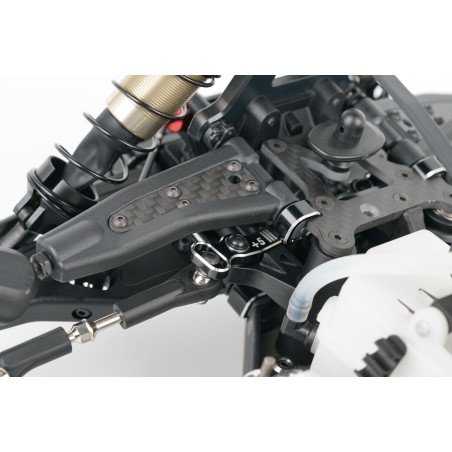

• AL7075 Ackermann steering plate (+5) included; optional +10 plate available (New)
• Servo Savor steering system

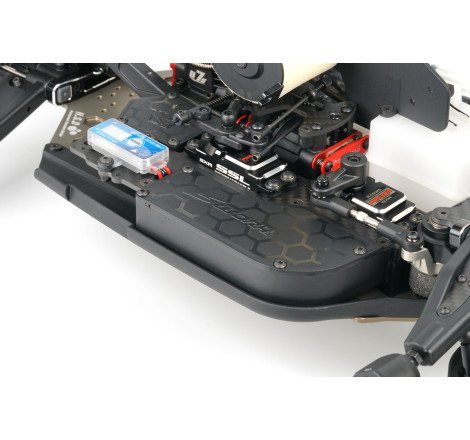

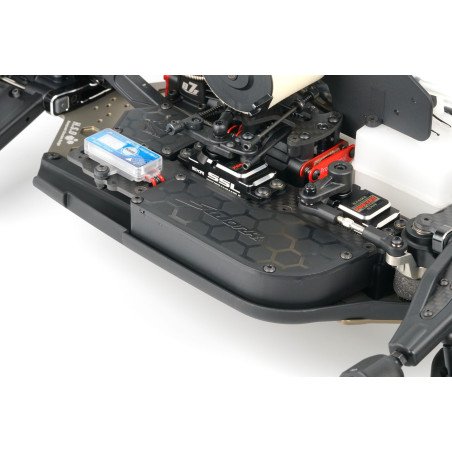

• Carbon plate style radio tray with multiple receiver, switch and transponder mounting positions (New)

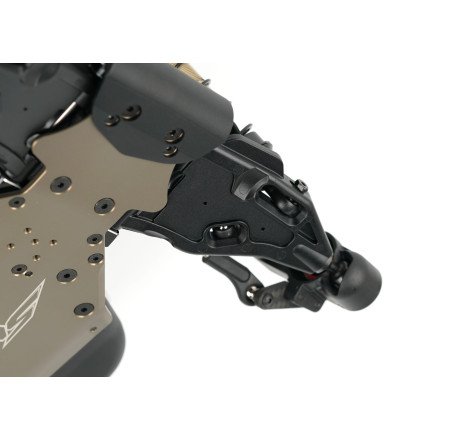

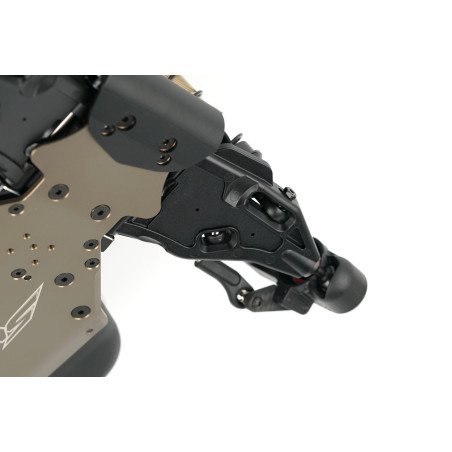

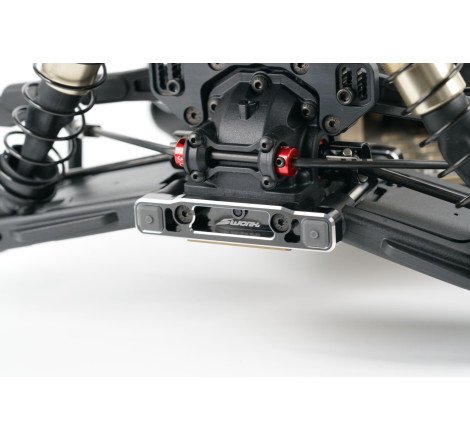

• Aluminum Intensity F/F and R/F narrow lower suspension plate (New)
• Lower arm plastic covers, front and rear (New)
• Nitro series centre brake disk holder
• T7075 aluminium parts throughout; optimized composite material

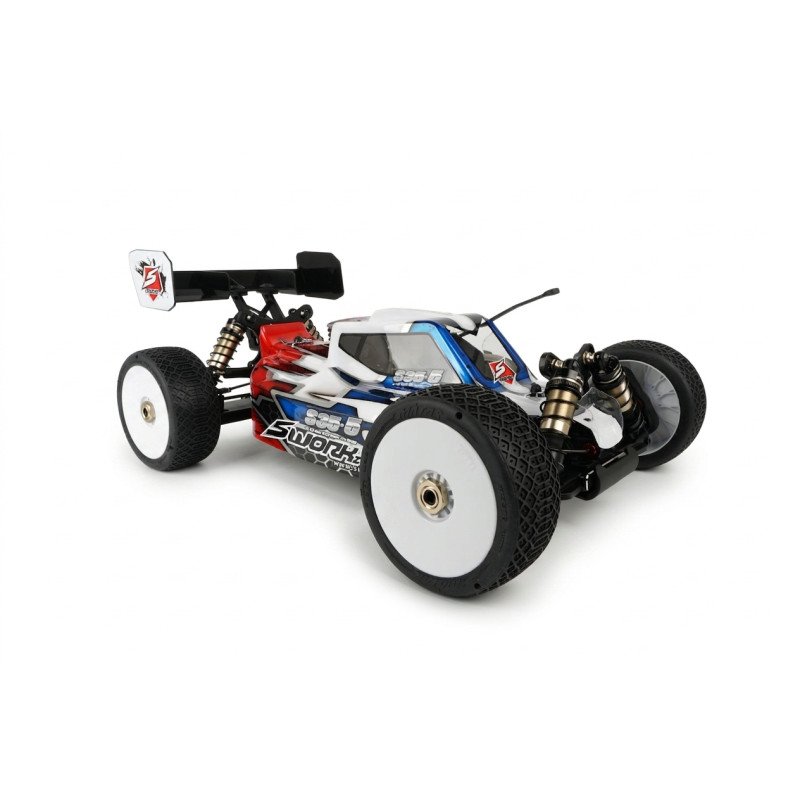

• Aerodynamically optimized Falcon ST-5 body shell included, unpainted (New)
• 2 front chassis braces included

Technical Specifications

• Length: 510 mm
• Width: 308 mm
• Height: 220 mm
• Ground Clearance: 65 mm
• Wheelbase: 325–330 mm
• Track: F: 304 mm / R: 306 mm
• Gear Ratio: C: 47/13T, F/R: 43/13T
• Weight: 3400 g (race condition)

Required to Complete (Not Included)

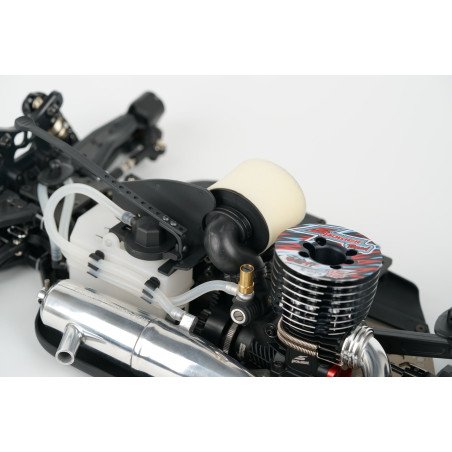

• 1/8 nitro engine (.21)
• Exhaust pipe and manifold
• Radio transmitter and receiver
• Steering servo
• Throttle/brake servo
• Wheels and tyres
• Glow plug
• Glow plug igniter
• Nitro fuel
• Body shell paint
