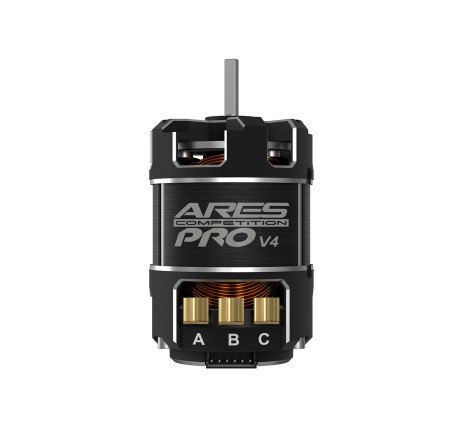

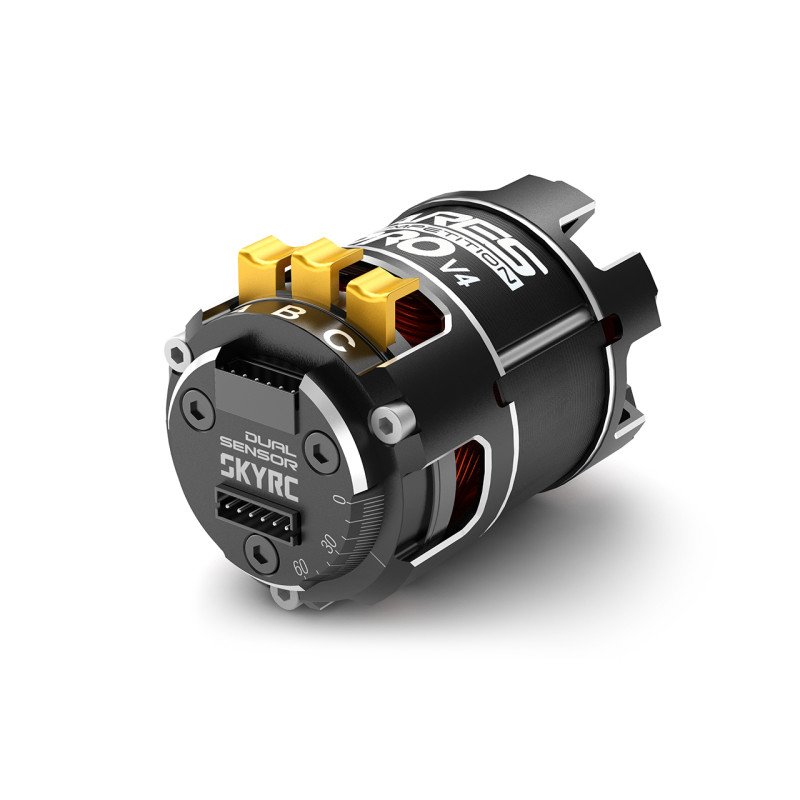

SKYRC ARES PRO V4 13.5T SPEC 3050KV

The SkyRC ARES PRO 4 is a competition-grade sensored brushless 540-format motor, ROAR approved, designed to deliver professional-level power and precision in 1/10 RC cars. Its advanced sensor technology provides ultra-smooth throttle response and precise low-RPM control, eliminating cogging even in the most technical corners. Available in multiple turn options (Stock and Modified) to suit any racing class. The CNC aluminum chassis with rear ventilation aids thermal dissipation, and the modular design allows full disassembly and maintenance with standard RC tools.

• Type: Competition sensored brushless motor, 540 format
• Approval: ROAR approved
• Stock turn options (SPEC): 13.5T (3,500 KV, 190 W) / 21.5T / 25.5T (1,860 KV, 80 W)
• Modified turn options: 5.5T (7,450 KV, 430 W) and others
• Compatible battery: 1–3S LiPo (depending on turns)
• Sensor ports: Dual
• Timing: Adjustable directly on the motor
• Chassis: CNC aluminum with heat sink and rear ventilation
• Windings: High-purity copper, rated to 220 °C
• Rotor: Precision-balanced, neodymium magnet rated to 200 °C
• Design: Modular, fully rebuildable
• Dimensions: 35.8 × 35.8 × 52 mm
• Weight: 148 g ±5 g
• Operating temperature: −10 °C – 80 °C
• Recommended ESCs: SkyRC TS160, TS120, TS50

For more information see the manufacturer website: https://www.skyrc.com/ares-pro-4
