FMS022P
FMS 800MM F4U CORSAIR V2 PNP
Description

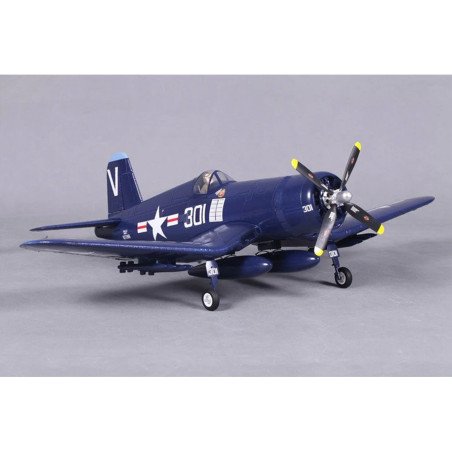

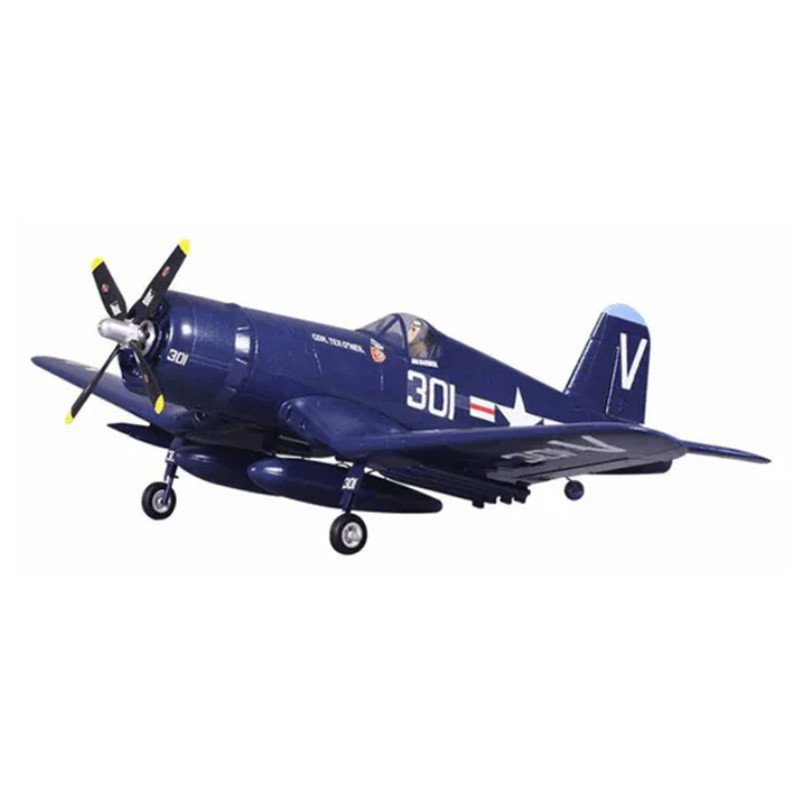

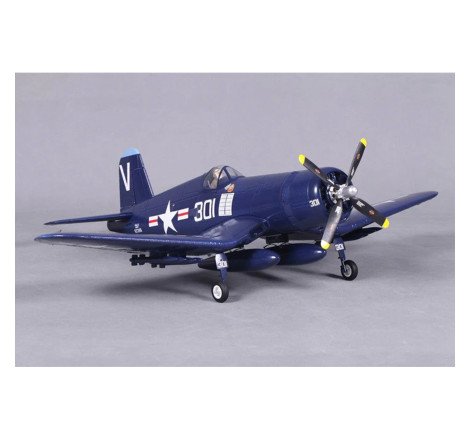

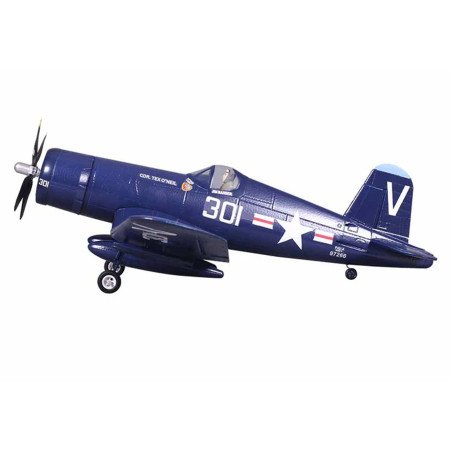

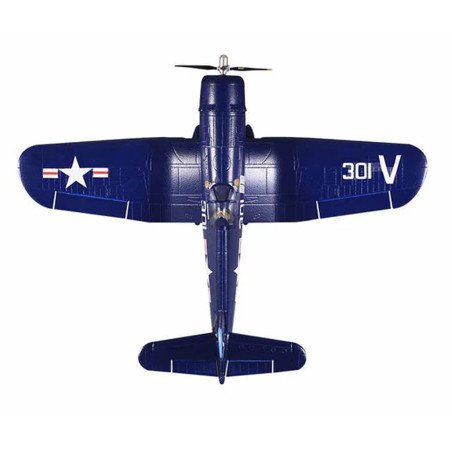

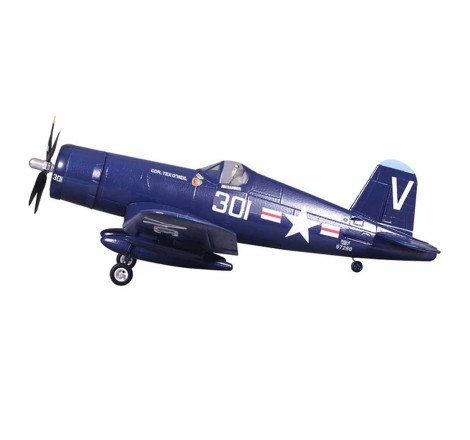

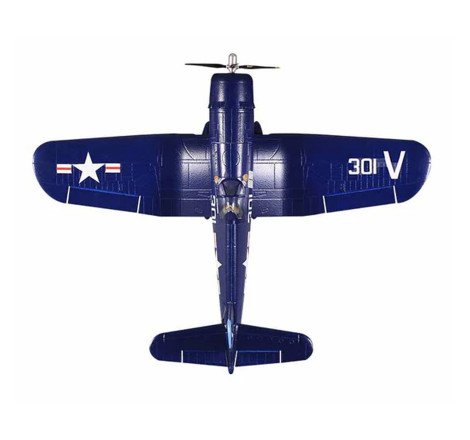

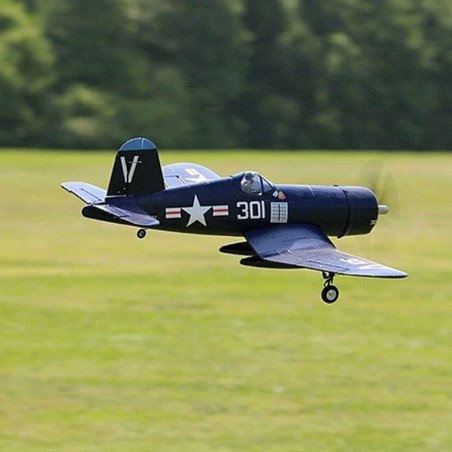

FMS F4U Corsair V2 800mm PNP

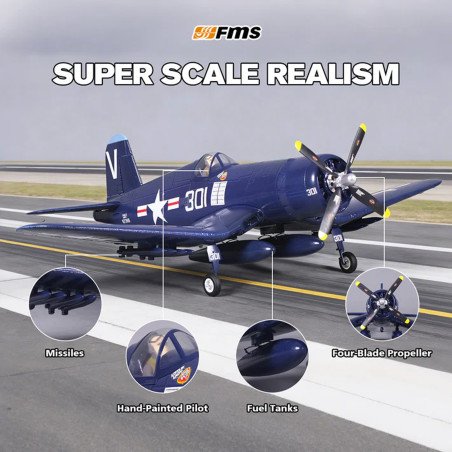

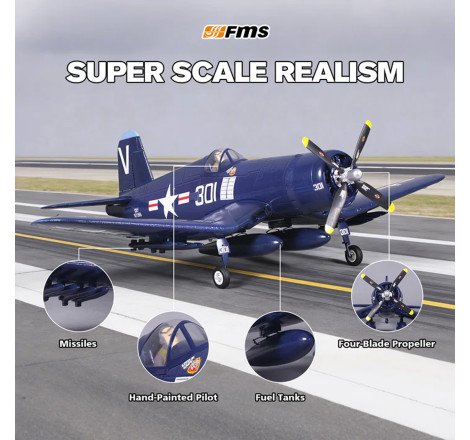

Scale replica of the iconic Vought F4U Corsair World War II fighter, manufactured by FMS Hobby as part of its 800mm warbird series. This V2 version features significant improvements over the previous generation: an upgraded KV1700 brushless motor (30% faster), optimized fuselage design, and an adjusted center of gravity for more stable and controllable flight. Built from durable EPO foam, it includes numerous scale details such as a 4‑blade propeller, fuel tanks, missiles, and a hand‑painted pilot figure. The reinforced main landing gear and steerable tail wheel complete a model ready to deliver an exciting flight experience. PNP (Plug‑N‑Play) version: includes motor, ESC, and factory‑installed servos.
Technical Specifications
| Wingspan | 800 mm (31.5") |
| Overall length | 660 mm (26.0") |
| Flying weight | Approx. 445 g |
| Motor | Brushless 3015 - KV1700 |
| ESC | 20A Brushless |
| Servos | 4 × 9 g |
| Required channels | 4 channels |
| Propeller | 7.5 × 4" (4 blades) |
| Center of gravity (CG) | 50 mm from the leading edge |
| Recommended battery | LiPo 2S 7.4V 1300 mAh (JST connector) |
| Approx. flight time | 6 minutes |
| Material | EPO foam |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | No |
| Retractable landing gear | No |
Required to complete (not included)
- Minimum 4‑channel radio transmitter
- Compatible receiver
- LiPo 2S 7.4V 1300 mAh battery (JST connector)
- LiPo battery charger
Product Details
FMS022P
Data sheet
- ASSEMBLY
- PNP
Specific References
- EAN13
- 784085210331
