FMS142PRD
FMS 64MM EDF FUTURA PNP RED
Description
FMS Futura 64mm EDF PNP – Red

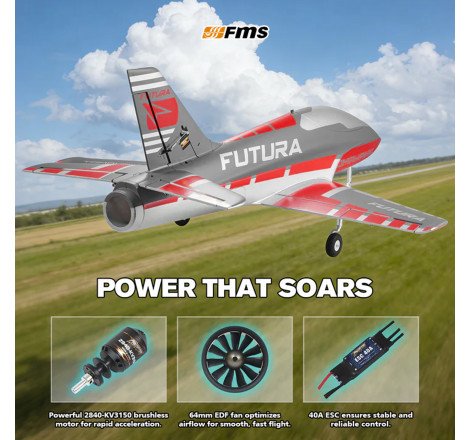

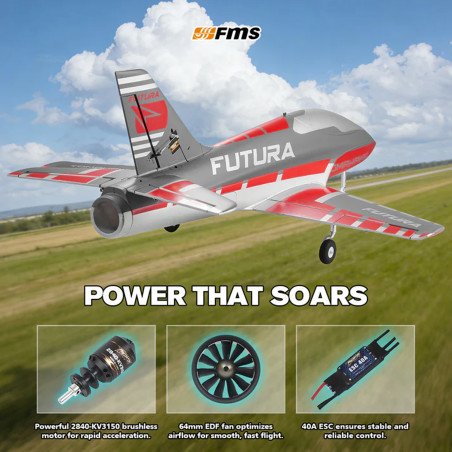

High‑performance sport jet with a 64mm EDF turbine, developed by FMS in collaboration with the German team TomaHawk Aviation. The Futura combines speed, agility, and exceptional control, delivering an exciting flight experience for both sport flying and aerobatics. Equipped with a high‑torque 2840‑KV3150 brushless motor, a stable 40A ESC, and an 11‑blade 64mm EDF unit, it delivers impressive power. Its eight high‑precision 9g servos, strategically installed in the wings, tail, and nose steering, enable a wide range of flight modes. The fully CNC‑metal landing gear with trailing‑link suspension allows operations on rough terrain. Glue‑free assembly is completed in just 10 minutes using 11 screws. Finished in eco‑friendly water‑based paint with a vibrant red scheme. Canopy secured with a safety latch. PNP (Plug‑N‑Play) version: includes motor, ESC, EDF unit, and factory‑installed servos.
Technical Specifications
| Wingspan | 900 mm (35.4") |
| Overall length | 995 mm (39.2") |
| Flying weight | Approx. 1150 g |
| Motor | Brushless 2840 - KV3150 |
| ESC | 40A |
| EDF | 64 mm, 11 blades |
| Servos | 8 × 9 g |
| Required channels | 6 channels |
| Center of gravity (CG) | 85–95 mm from the leading edge |
| Wing area | 16 dm² |
| Wing loading | 71.8 g/dm² |
| Recommended battery | LiPo 4S 14.8V 2200–2600 mAh 25C |
| Material | EPO foam |
| Ailerons | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Retractable landing gear | No (fixed CNC metal gear) |
Required to complete (not included)
- Minimum 6‑channel radio transmitter
- Compatible receiver
- LiPo 4S 14.8V 2200–2600 mAh 25C battery
- LiPo charger compatible with 4S
Product Details
FMS142PRD
Data sheet
- ASSEMBLY
- PNP
Specific References
- EAN13
- 784085210713
