FMS149PGY-REFV3

FMS 64MM EDF J-10 PNP GRAY W/REFLEX V3

Description

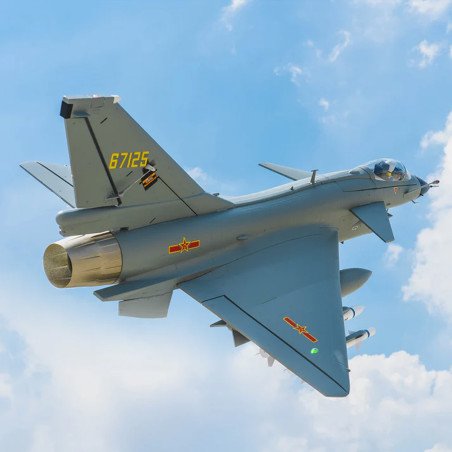

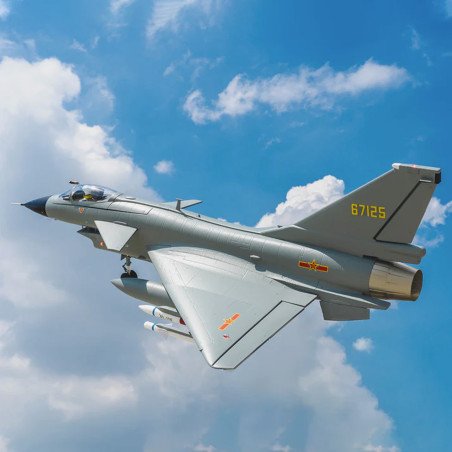

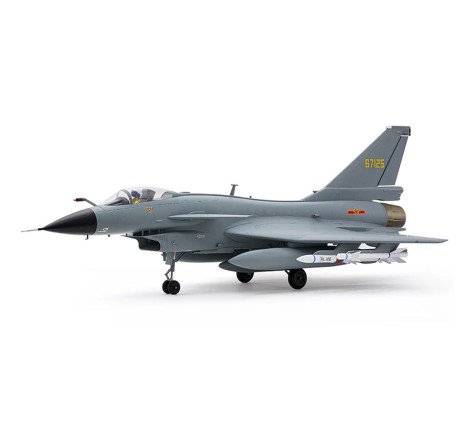

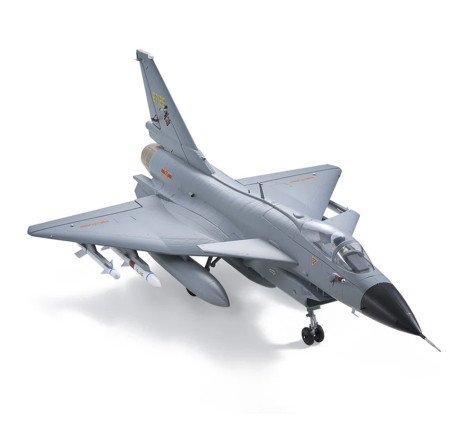

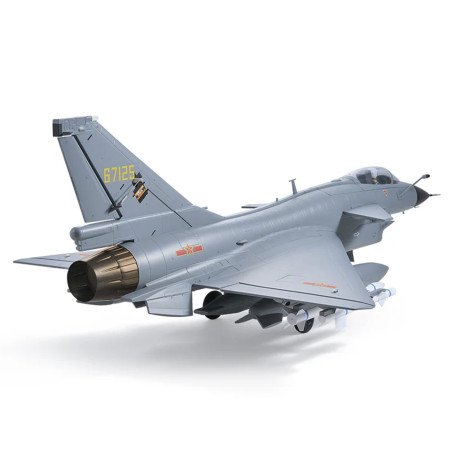

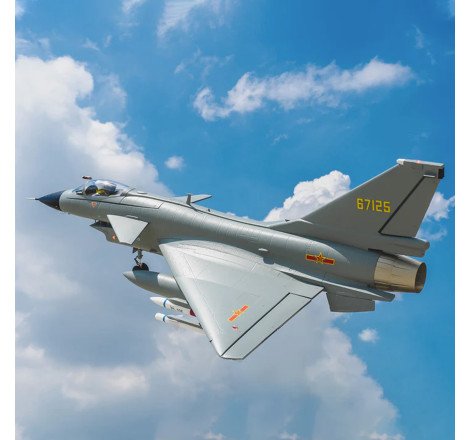

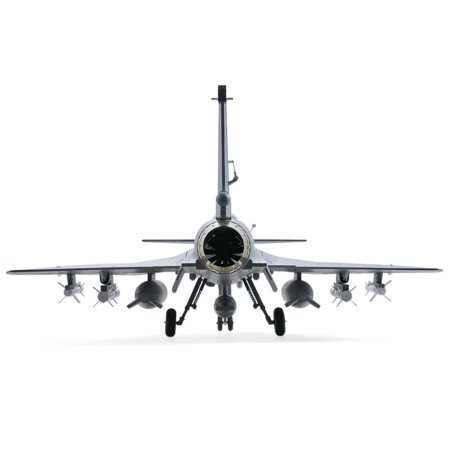

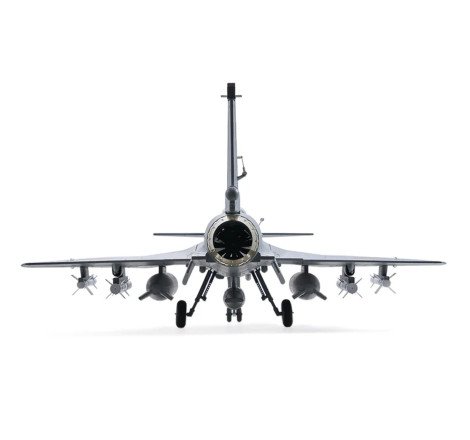

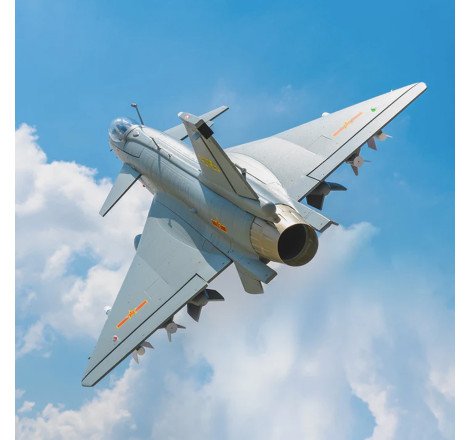

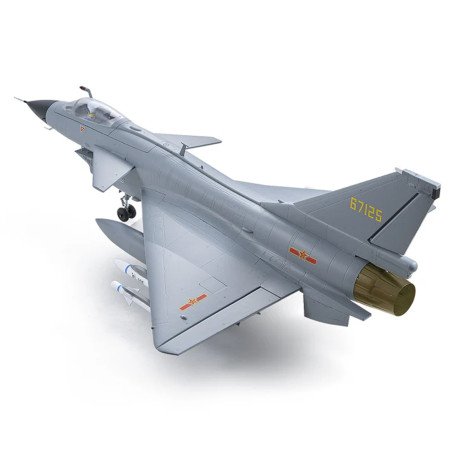

FMS J-10 64mm EDF PNP with Reflex V3 – Grey

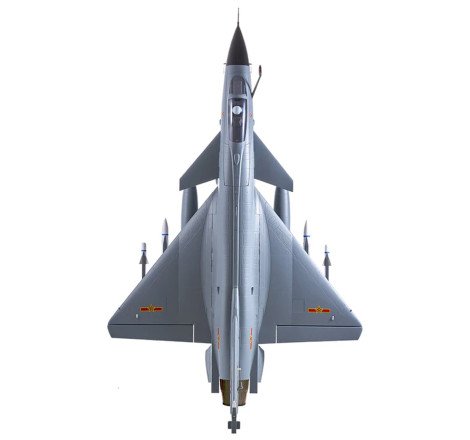

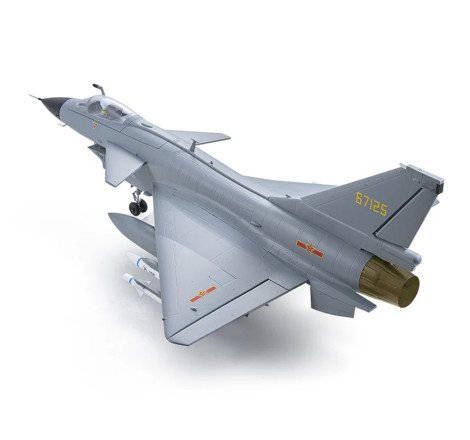

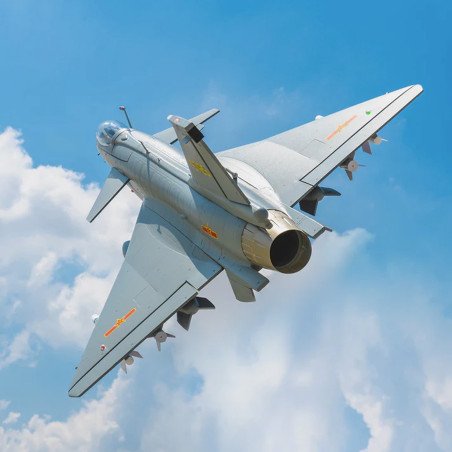

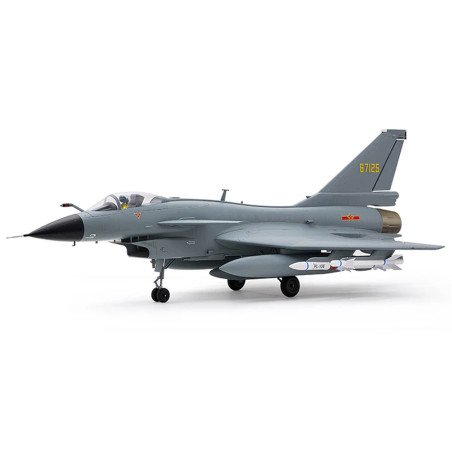

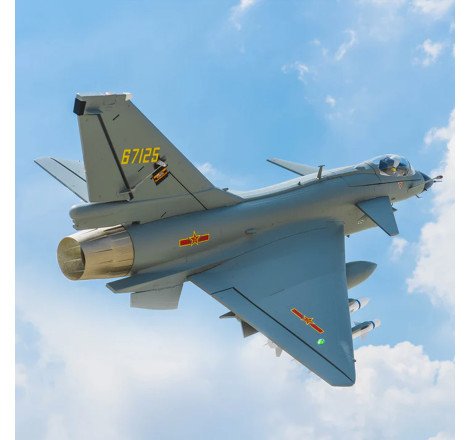

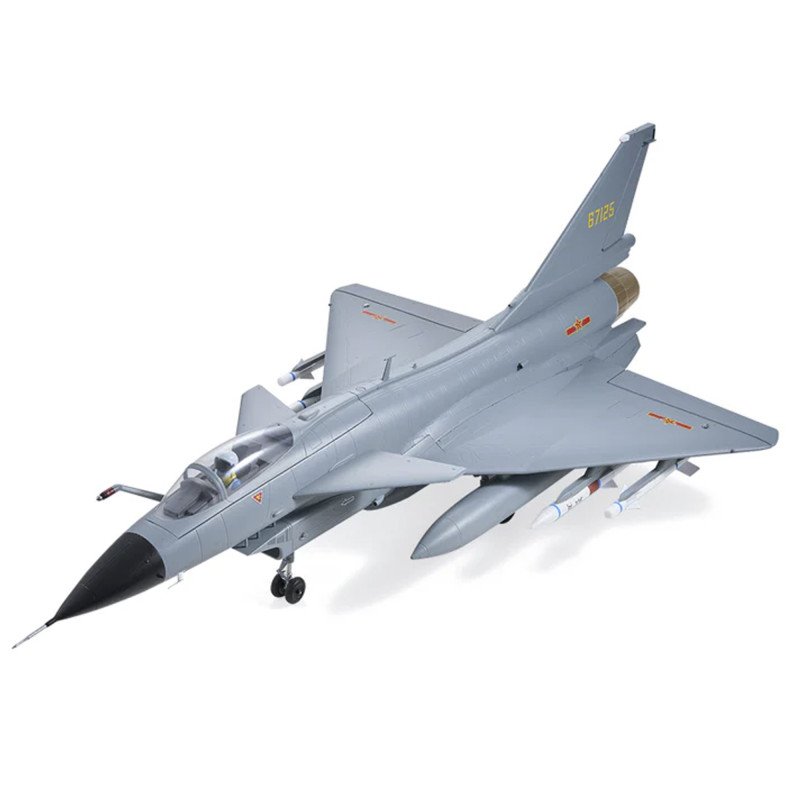

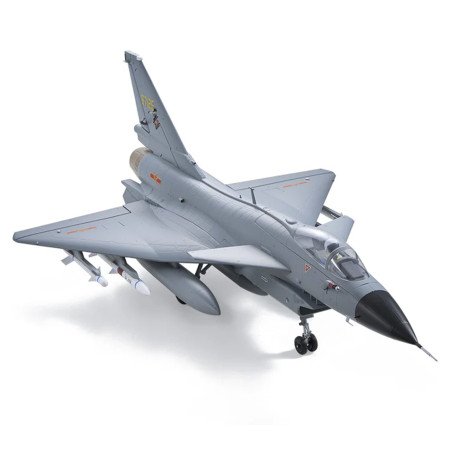

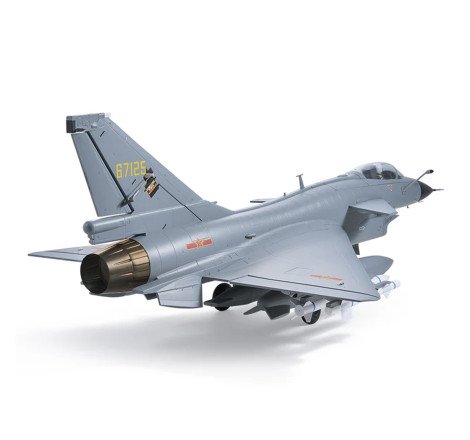

Scale replica of the Chinese Chengdu J‑10 “Vigorous Dragon,” a third‑generation multirole fighter aircraft, finished in an Air Force grey color scheme. This FMS model features the distinctive delta‑wing and canard configuration, providing excellent climb rate, altitude performance, and maneuverability at both high and low speeds. Powered by a 64mm 11‑blade EDF unit, a 2840‑KV3150 brushless motor, and a 40A ESC with reverse function (useful for braking after landing), it faithfully reproduces the sound and feel of a jet fighter. High‑fidelity details include a removable non‑functional weapons set (exclusive to the grey livery), in‑flight refueling probe, detailed cockpit with pilot figure, and five high‑intensity navigation lights. The CNC‑metal nose landing gear features shock absorption for rough surfaces. Built from durable EPO 40 foam with water‑based paint. Includes the Reflex V3 stabilizer with three flight modes. PNP version: includes motor, ESC, EDF, servos, and Reflex V3 preinstalled.

Technical Specifications

Wingspan690 mm (27.2")
Overall length1110 mm (43.7")
Flying weightApprox. 1100 g
MotorBrushless 2840 - KV3150
ESC40A with reverse function
EDF64 mm, 11 blades
Servos4 × 9 g digital
Required channels6 channels
Center of gravity (CG)80–90 mm from the leading edge
Wing area18.5 dm²
Wing loading59.5 g/dm²
Recommended batteryLiPo 4S 14.8V 2200–2600 mAh 25C (XT60 connector)
Approx. flight time3 minutes
MaterialEPO 40 foam
AileronsYes
RudderYes
FlapsNo
Retractable landing gearNo
StabilizerReflex V3 included (3 modes)

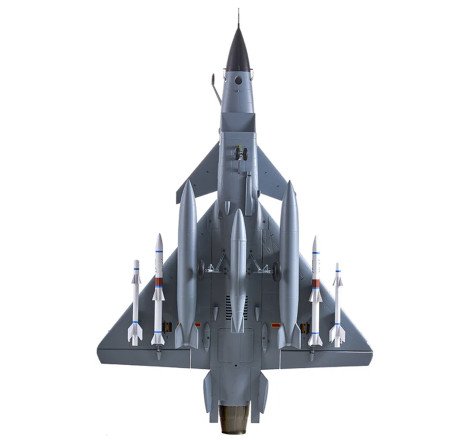

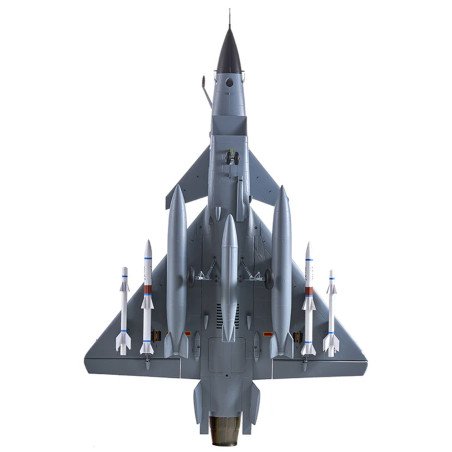

ArmamentRemovable non‑functional weapons set (grey version only)

Required to complete (not included)

  • Minimum 6‑channel radio transmitter
  • Compatible receiver
  • LiPo 4S 14.8V 2200–2600 mAh 25C battery (XT60 connector)
  • LiPo charger compatible with 4S

Product Details

FMS149PGY-REFV3

Data sheet

ASSEMBLY
PNP

Specific References

EAN13
784085211406
