SRT-BHMX2

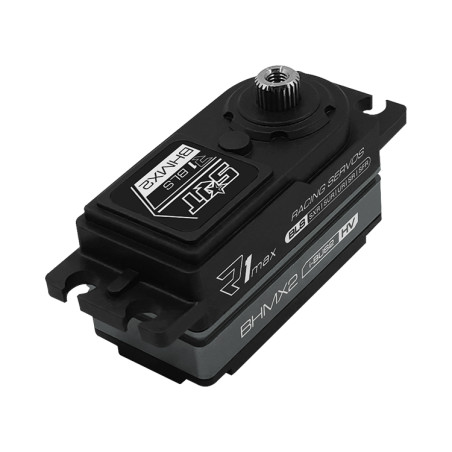

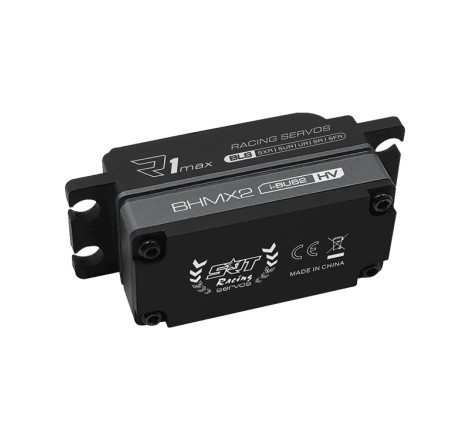

SRT XM2 1/10-1/8 ON ROAD METAL CASE LOW PROFILE 23KG 0.065S. HV BRUSHLESS SERVO

Description

BHMX2 is designed for 1/10 Electric Touring, 1/10 E-Buggy, 1/10 Nitro-Touring and 1/8 Nitro GP.

Specifications

Motor Type: Brushless

Gear Type: Metal

Gear Material: Titanium + 7075

control system: pulse width control

working frequence: 1520μs / 330hz

operating voltage: dc6.0-8.4v

operating temperature range: -10 to + 60 degree

operating speed (6.0v): 0.080 sec/60 degrees at no load

operating speed (7.4v): 0.073 sec/60 degrees at no load

operating speed (8.4v): 0.065 sec/60 degrees at no load

stall torque (6.0v): 15.0kg.cm (208.3 oz/in)

stall torque (7.4v): 18.0kg.cm (250.0 oz/in)

stall torque (8.4v): 23.0kg.cm (319.4 oz/in)

potentiometer drive: direct drive

dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in

weight: 42.0g (1.48 oz)

connector wire length: jr 180 mm

Product Details

SRT-BHMX2

Data sheet

ENGINE TYPE
Brushless
PRODUCT
Servos
VEHICLE SCALE
1/10
VEHICLE SCALE
1/8
CATEGORY
Car
VOLTAGE
High Voltage

Specific References

EAN13
6969002235602
