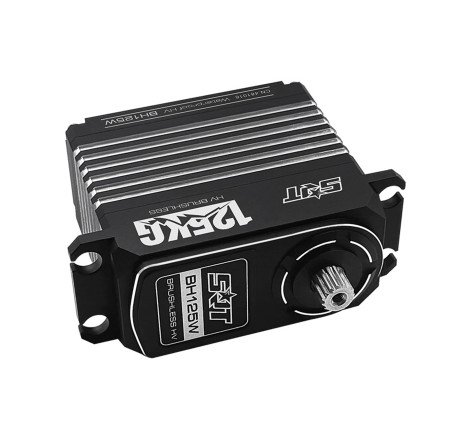

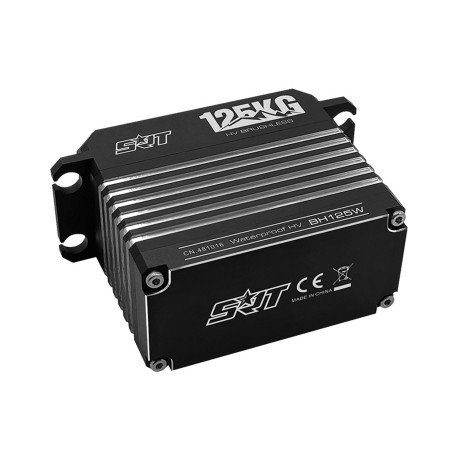

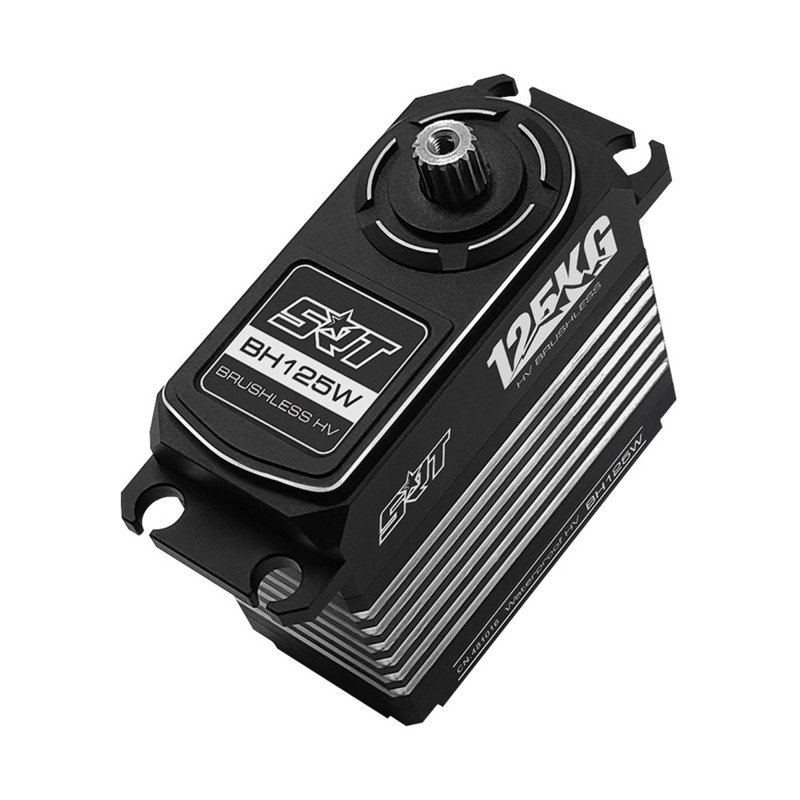

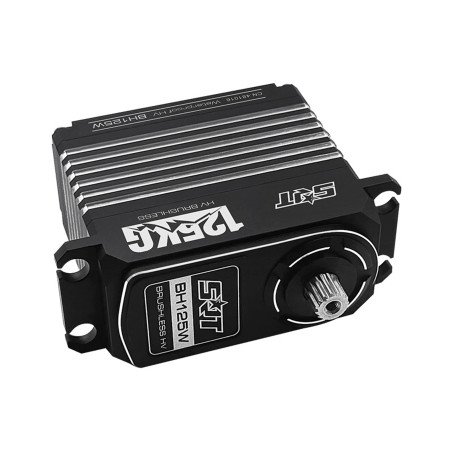

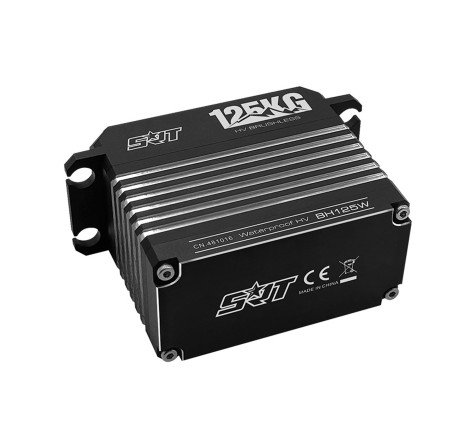

SERVO SRT BH125W HV BRUSHLESS CAJA METALICA 125KG 0.085S 1/5-1/6 OFF ON ROAD

KEY FEATURES

& Ideal for 1/5 on road and 1/5 off road scale applications

& Incredible efficiency and low power consumption

& NMB dual main bearings

& Superior waterproof

& 15T output shaft

& 1-Year Limited Warranty

Application :

1/5 Nitro Touring

1/5 Nitro Buggy

PRODUCT SPECIFICATIONS

Type: Digital

Bearing: Dual

Motor Type: Brushless

Gear Type: Metal

Gear Material: Steel

control system: pulse width control

working frequence: 1520μs / 330hz

operating voltage: dc6.0-8.4v

operating temperature range: -10 to + 60 degree

operating speed (6.0v): 0.12 sec/60 degrees at no load

operating speed (7.4v): 0.11 sec/60 degrees at no load

operating speed (8.4v): 0.085 sec/60 degrees at no load

stall torque (6.0v): 90.0kg.cm (1249.9 oz/in)

stall torque (7.4v): 110.0kg.cm (1527.6 oz/in)

stall torque (8.4v): 125.0kg.cm (1735.9 oz/in)

potentiometer drive: direct drive

dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in

weight: 209.0g (7.37 oz)

connector wire length: jr 350 mm
